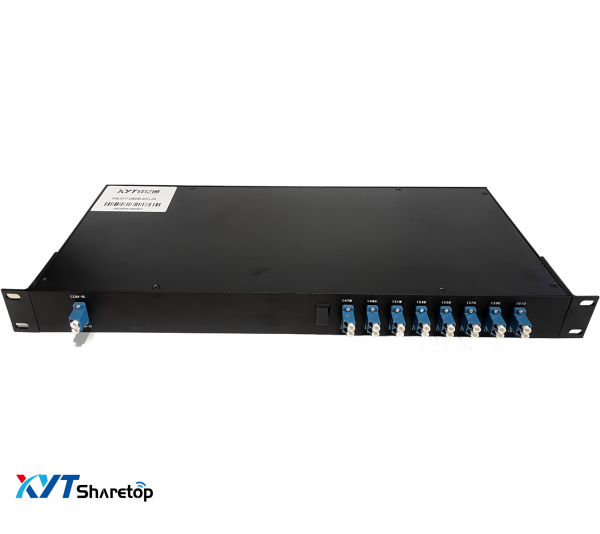

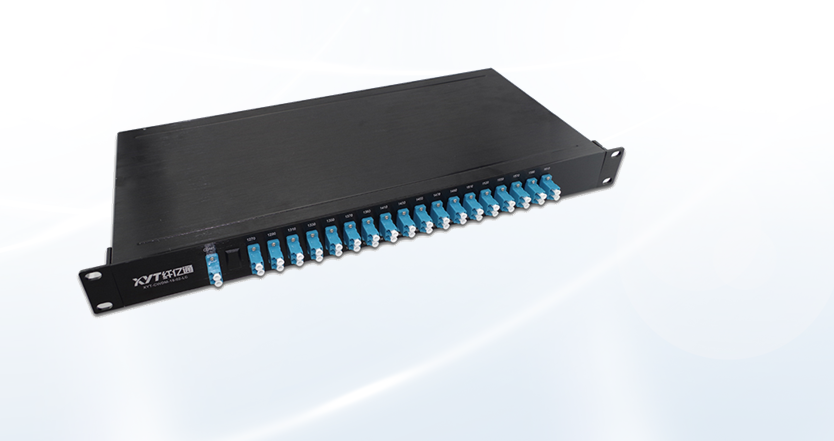

1.XYT-TECH Sharetop offers a full range of CWDM Mux-Demux and Optical Add Drop Multiplexer(OADM)units to suit all kinds applications and network solutions.Some most common ones are:Gigabit&10G Ethernet,SDH/SONET,ATM,ESCON,Fibre Channel,FTTx and CATV.2.Shartop CWDM Mux Demux products provide up to 16-channel or even 18-channel Multiplexing on a single fiber.Due the the low insertion loss is needed in WDM networks,we can also add “Skip Component” in a CWDM Mux/Demux module to reduce the IL as an option.Standard CWDM Mux/Demux package type include:ABS box package,LGX pakcage and 19” 1U rackmount.
- Product Features -
1．Wide pass band
2．Low Insertion Loss
3．High Stability and reliability
4．High Channel Isolation
5．Epoxy-free on Optical Path
- Product Specification -

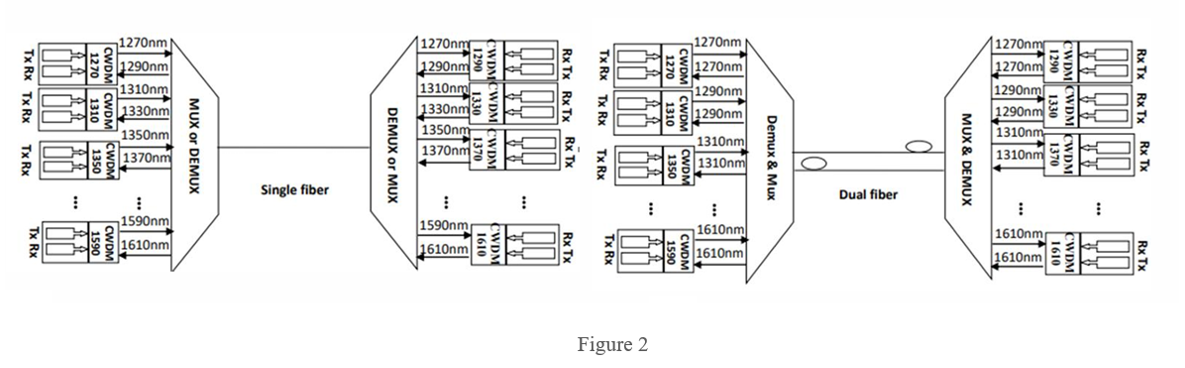

1．WDM Network
2．Line Monitoring
3．Acess Network
4．Cellular Application
5．Fiber Optical amplifier

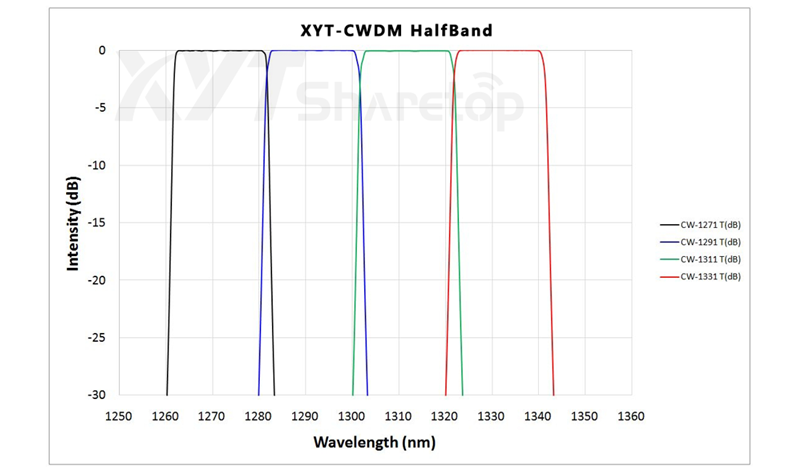

Parameter | 4 Channel | ||||||||
Mux | Demux | ||||||||
Channel Wavelength(nm) | 1270~1610 | ||||||||
Center wavelength Accuracy(nm) | ±0.5 | ||||||||
Channel Spacing(nm) | 20 | ||||||||
Channel Passband(@-0.5dB bandwidth(nm) | >13 | ||||||||
Insertion Loss(dB) | ≤1.6 | ||||||||
Channel Uniformity(dB) | ≤0.6 | ||||||||
Channel Ripple(dB) | 0.3 | ||||||||
Isolation(dB) | Adjacent | N/A | >30 | ||||||
Non-adjacent | N/A | >40 | |||||||
Inertion Loss(dB) | <0.005 | ||||||||
Wavelength Temperature Shifting(nm/℃) | <0.002 | ||||||||
Polarization Dependent Loss(dB) | <0.1 | ||||||||
Polarization Mode Dispersion(PS) | <0.1 | ||||||||
Directivity(dB) | >50 | ||||||||
Return Loss（dB） | >45 | ||||||||
Maximum Power Handling(mW) | 300 | ||||||||
Opterating Temperature(℃) | -5~+75 | ||||||||
Storage Temperature(℃) | -40~85 | ||||||||

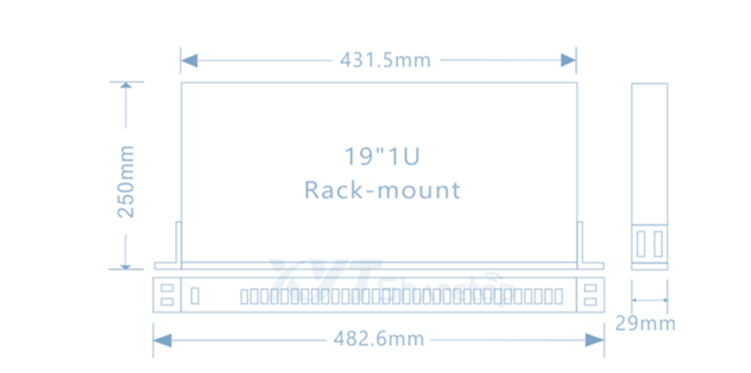

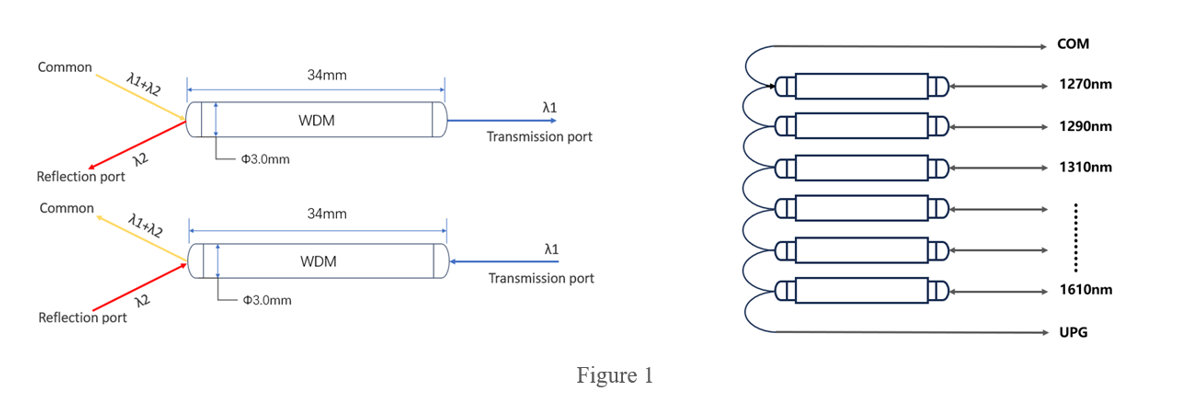

Package dimension(mm) | ABS module | ||||||||
1U rack | |||||||||
Above specification are for device without connector.
Ordering information(CWDM-B-04-27-1-1-0) | |||||
Configuration | Number of Channels | 1st Channel | Fiber Type | Fiber Length | In/Out Connector |
B=BIDI(single fiber) D=Dual fiber | 04=4 Channel 08=8 Channel 16=16 Channel N=N Channel …… 18=18 Channel | 27=1270nm 47=1470nm 49=1490nm …… 61=1610nm SS=special | 1=Bare fiber 2=900um Loose tube 3=2mm Cable 4=3mm Cable | 1=1m | 0=None 1=FC/APC 2=FC/PC 3=SC/APC 4=SC/PC 5=LC …… |
|
