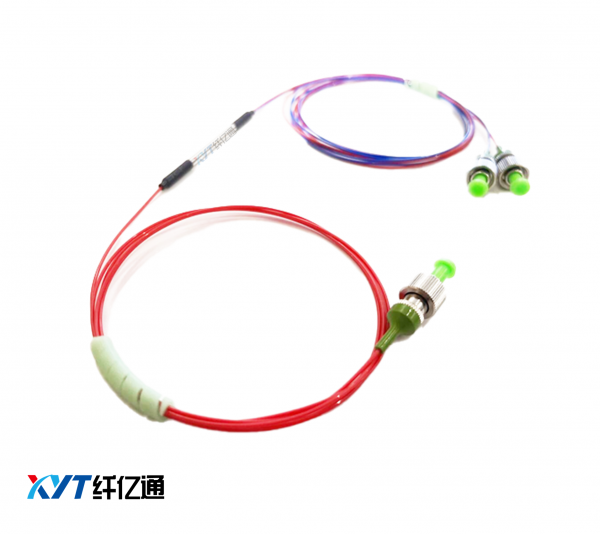

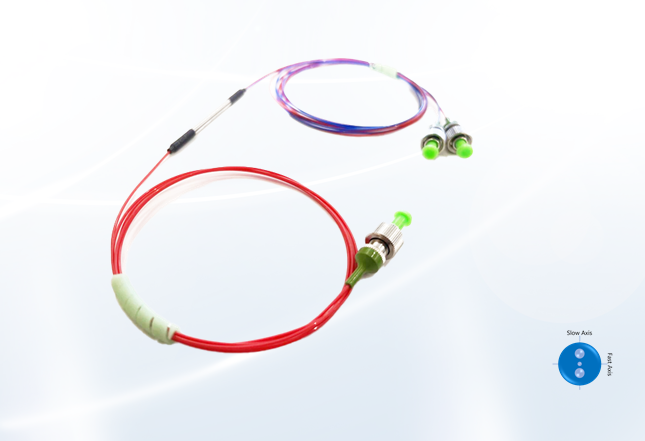

XYT-PMWDM-780/1060
【NO.】PMWDM-780&1060-FBT51
1x2 | ||
中心波长（nm） | 780/1060 | |
带宽范围（nm） | ±5 | |
隔离度(dB) | ≥13 | |
插入损耗(dB) | ≤1.0 | |
消光比(dB) | ≥18 | |
承受功率（W） | 0.5或 定制 | |
回波损耗（dB） | 50 | |
接头类型 | FC/APC 或 定制 | |
光纤类型 | PM780-HP | |
光纤长度（m） | 1米 或 定制 | |
封装尺寸（mm） | Ø3.0x60 | Ø3.0x54 |
工作温度（℃） | 0~+70 | |
储存温度（℃） | -40~+85 | |
最大拉力（N） | ≤5 | |
*规格为不带连接器，测试数据指标25℃。
*对于带连接器的设备，插入损耗高0.3dB，回波损耗低5dB，消光比低2dB，慢轴对准Key键。
*对于不同功率参数，产品采用封装尺寸不同。

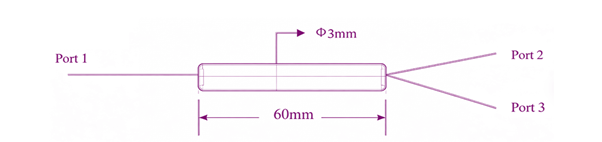

封装结构图：（mm）
|
