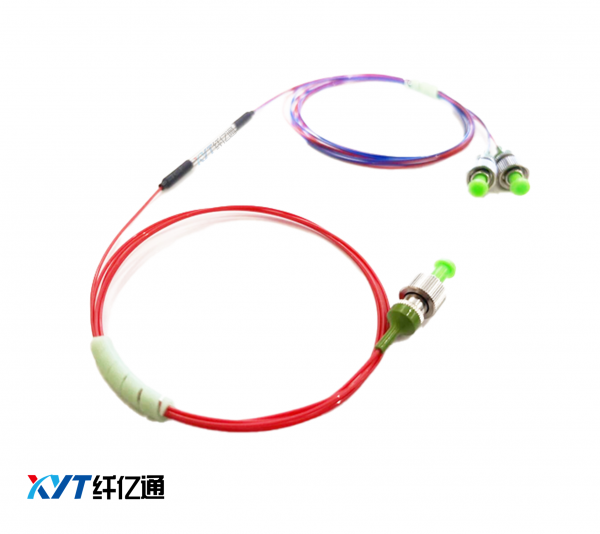

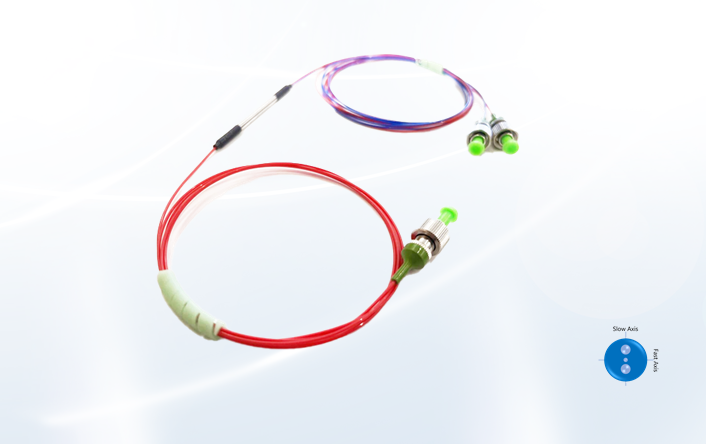

【NO.】PMWDM-780&2050-FBT60
1x2 | ||
中心波长（nm） | 780/2050 | |
带宽范围（nm） | ±10 | |
隔离度(dB) | ≥14@780nm | ≥18@2050nm |
插入损耗(dB) | ≤1.5@780nm | ≤0.9@2050nm |
消光比(dB) | ≥18 | |
承受功率（W） | 0.5或 定制 | |
回波损耗（dB） | 50 | |
接头类型 | FC/APC 或 定制 | |
光纤类型 | PM780-HP@780nm | PM1950@COM/2050nm |
光纤长度（m） | 1米 或 定制 | |
封装尺寸（mm） | Ø3.0x60 | Ø3.0x54 |
工作温度（℃） | 0~+70 | |
储存温度（℃） | -40~+85 | |
最大拉力（N） | ≤5 | |
*规格为不带连接器，测试数据指标25℃。
*对于带连接器的设备，插入损耗高0.3dB，回波损耗低5dB，消光比低2dB，慢轴对准Key键。
*对于不同功率参数，产品采用封装尺寸不同。

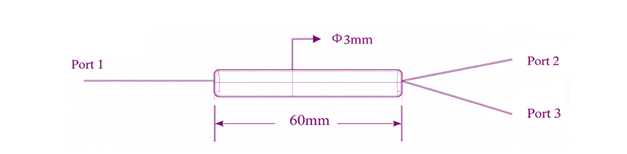

封装结构
订购信息： | ||||
PMWDM=保偏波分复用器 | XYT-PMWDM-A-B-C-D-E-F-G | |||
A=结构 | 1X2=1X2 | …… | SS=可定制 | |
B=工作波长 | 780/1950=780/1950nm | 780/2000=780/2000nm | 780/2050=780/2050nm | SS=可定制 |
C=光纤类型 | P7P19= PM780-HP/PM1950 | SS=可定制 | ||
D=套管类型 | 0.25=250μm | 0.9=900μm | …… | SS=可定制 |
E=光纤长度 | 1M=1米 | 2M=2米 | …… | SS=可定制 |
F=接头类型 | FA=FC/APC | SA=SC/APC | N=不含头 | SS=定制 |
G=承受功率 | 0.3=0.3W | 0.5=0.5W | …… | SS=可定制 |
类型 | PM1950 | PM780-HP |
工作波长 | 1850 – 2200 nm | 770 – 1100 nm |
数值孔径 | 0.200 | 0.120 |
模场直径（Gaussian） | 8.0 µm @ 1950 nm | 5.3 ± 1.0 µm @ 850 nm |
截止波长 | 1720 ± 80 nm | 710 ± 60 nm |
损耗衰减 | N/A | ≤ 4.0 dB/km @ 850 nm |
拍频长度（标称） | 5.2 mm @ 1950 nm | 2.4 mm @ 850 nm |
归一化交叉串扰 | N/A | ≤ - 40 dB at 4 m @ 850 nm |
双折射 | N/A | nominal 3.5 × 10⁻⁴ |
包层直径 | 125.0 ± 1.0 µm | 125.0 ± 1.0 µm |
芯径 | 7.0 µm | 4.5 µm |
涂覆层直径 | 245.0 ± 15.0 µm | 245.0 ± 15.0 µm |
包层/涂覆层偏差 | < 5.0 µm | < 5.0 µm |
纤芯/包层同心度偏差 | ≤ 0.50 µm | ≤ 0.50 µm |
涂覆层材料 | Acrylate | Acrylate |
工作温度 | -40 to 85 °C | -40 to 85 °C |
强度测试的等级 | ≥ 100 kpsi (0.7 GN/m²) | ≥ 200 kpsi (1.4 GN/m²) |
|
