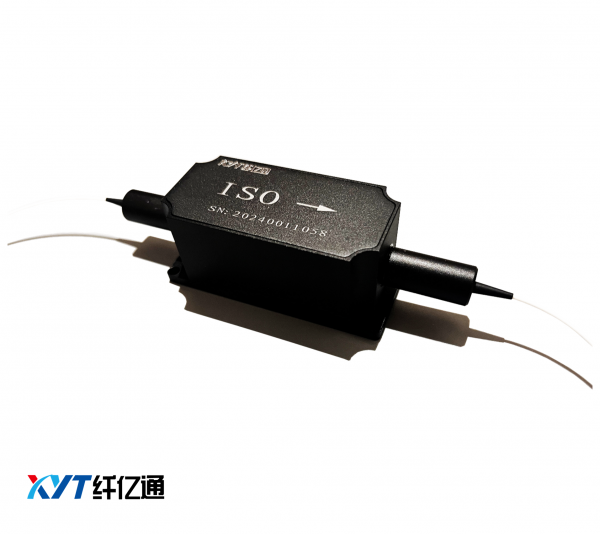

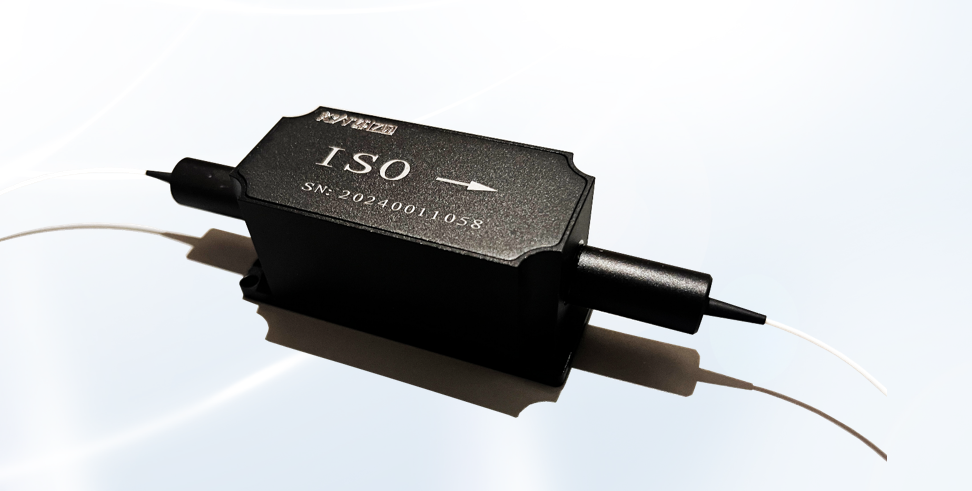

偏振无关光纤隔离器（980nm）
中心波长（nm） | 980 |
带宽范围（nm） | ±10 |
典型隔离度(dB) | 30 |
最小隔离度(dB) | 25 |
典型插入损耗 (dB) | 0.8 |
最大插入损耗(dB) | 1.2 |
偏振相关损耗(dB) | 0.15 |
承受功率（连续光CW）（W） | 0.5 1 5 10 20或 定制 |
回波损耗（dB） | 45 |
接头类型 | FC/APC 或 定制 |
光纤类型 | HI1060 |
光纤长度（m） | 1米 或 定制 |
封装尺寸（mm） | 58x28x26 |
工作温度（℃） | 0~70 |
储存温度（℃） | -20~85 |
最大拉力（N） | ≤5 |
*规格为不带连接器，上述规格参数在中心波长、无连接器、室温23℃条件下测试得出。
*规格为不带连接器，对于带连接器的器件，插入损耗（IL）将增加0.3dB，回波损耗（RL）将降低5dB。
*对于不同功率参数，产品采用封装尺寸不同。

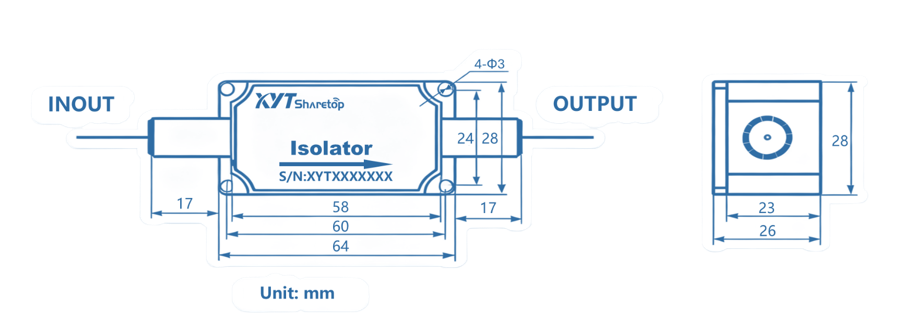

封装结构
产品订购：
订购信息： | ||||||
ISO=光纤隔离器 | XYT-ISO-A-B-C-D-E-F-G | |||||
A=工作波长 | 980=980nm | 1030=1030nm | 1040=1040nm | 1050=1050nm | 1064=1064nm | S=可选 |
B=光纤类型 | H1=HI1060 Corning光纤 | HP=1060-XP Nufern光纤 | …… | SS=可定制 | ||
C=套管类型 | 0.25=裸纤250μm | 0.9= 900μm | 2.0=2.0mm | 3.0=3.0mm | AF=铠装 | SS=可定制 |
D=光纤长度 | 1M=1米 | 2M=2米 | …… | SS=可定制 | ||
E=接头类型 | FA=FC/APC | SA=SC/APC | FU=FC/UPC | …… | N=不含头 | SS=定制 |
F=承受功率 | 05=0.5W | 1=1W | 5=5W | 10=10W | …… | SS=可定制 |
G=功率类型 | P=脉冲光 | C=连续光 | ||||
类型 | Hi1060 | 1060-XP |
工作波长 | > 980nm | 980 – 1600 nm |
数值孔径 | 0.140 | 0.140 |
模场直径（Gaussian） | 5.9 ± 0.3µm @ 980 nm 6.2 ± 0.3 µm @ 1060 nm | 5.9 ± 0.5 µm @ 980 nm 6.2 ± 0.5 µm @ 1060 nm 9.5 ± 0.5 µm @ 1550 nm |
截止波长 | 920 ± 50 | 920 ± 30 nm |
损耗衰减 | ≤ 1.5 dB/km @ 1060 nm ≤ 2.1 dB/km @ 980 nm | ≤ 1.5 dB/km @ 1060 nm ≤ 2.1 dB/km @ 980 nm |
包层直径 | 125.0 ± 0.5 µm | 125.0 ± 0.5 µm |
芯径 | 5.3µm | 5.8 µm |
涂覆层直径 | 245.0 ± 10.0 µm | 245.0 ± 10.0 µm |
包层/涂覆层偏差 | < 5.0 µm | < 5.0 µm |
纤芯/包层同心度偏差 | ≤ 0.3µm | ≤ 0.30 µm |
涂覆层材料 | 丙烯酸酯 | 丙烯酸酯 |
工作温度 | -60 to 85 | -55 to 85 °C |
短期弯曲半径 | ≥ 6 mm | ≥ 6 mm |
长期弯曲半径 | ≥ 13 mm | ≥ 13 mm |
强度测试的等级 | ≥ 200 kpsi (1.4 GN/m²) | ≥ 200 kpsi (1.4 GN/m²) |
|
