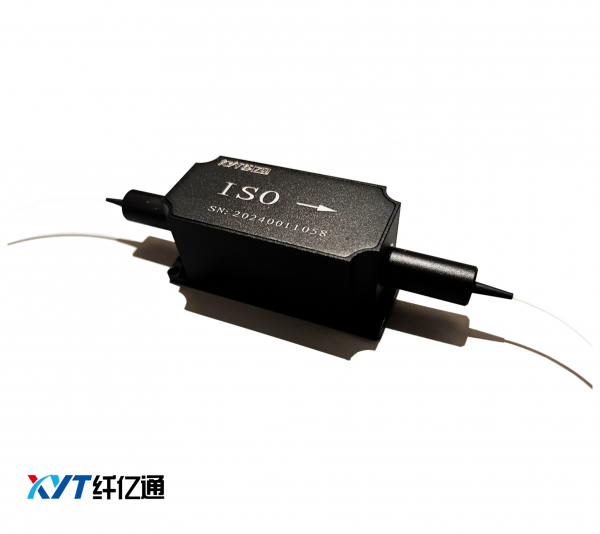

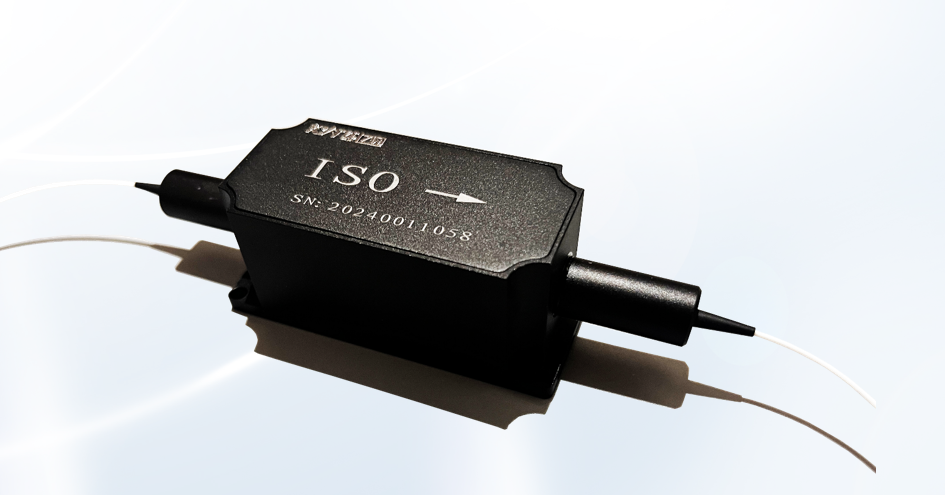

中心波长（nm） | 1120 | 1150 | ||
带宽范围（nm） | ±10 | |||
典型隔离度(dB) | 33 | 32 | 33 | 32 |
最小隔离度(dB) | 26 | |||
典型插入损耗 (dB) | 0.8 | 0.6 | 0.8 | 0.6 |
最大插入损耗(dB) | 1.2 | 1.1 | 1.2 | 1.1 |
偏振相关损耗(dB) | 0.15 | 0.2 | 0.15 | 0.2 |
承受功率（连续光CW）（W） | 0.5 1 5 10 20 30或 定制 | |||
回波损耗（dB） | 45 | |||
接头类型 | FC/APC（＞1W不含头） 或 定制 | |||
光纤类型 | HI1060、10/125、20/400 | |||
光纤长度（m） | 1米 或 定制 | |||
封装尺寸（mm） | 58x28x26 | |||
工作温度（℃） | -5~70 | |||
储存温度（℃） | -20~85 | |||
最大拉力（N） | ≤5 | |||
*规格为不带连接器，上述规格参数在中心波长、无连接器、室温23℃条件下测试得出。
*规格为不带连接器，对于带连接器的器件，插入损耗（IL）将增加0.3dB，回波损耗（RL）将降低5dB。
*对于不同功率参数，产品采用封装尺寸不同。

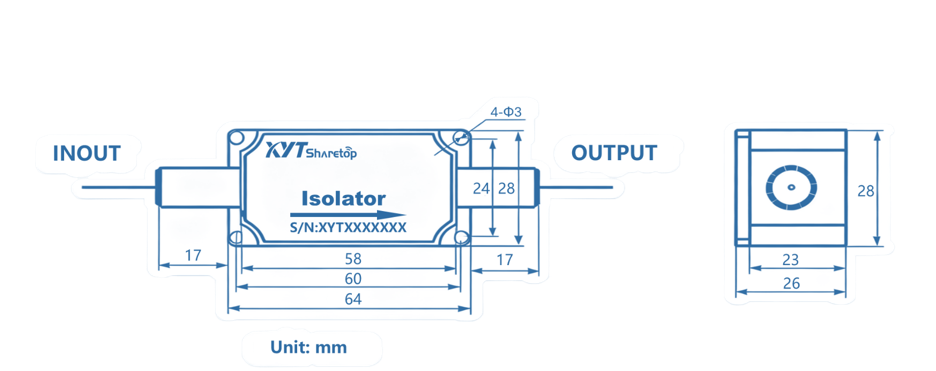

封装结构
产品订购：
订购信息： | ||||||
ISO=光纤隔离器 | XYT-ISO-A-B-C-D-E-F-G | |||||
A=工作波长 | 1120=1120nm | 1150=1150nm | …… | S=可选 | ||
B=光纤类型 | G2=LMA-GDF-10/125-M Nufern光纤 | G3=LMA-GDF-20/400-M Nufern | H1=HI1060 | S=可选 | ||
C=套管类型 | 0.25=裸纤250μm | 0.9= 900μm | 2.0=2.0mm | 3.0=3.0mm | AF=铠装 | S=可选 |
D=光纤长度 | 1M=1米 | 2M=2米 | …… | SS=可定制 | ||
E=接头类型 | FA=FC/APC | SA=SC/APC | FU=FC/UPC | …… | N=不含头 | S=可选 |
F=承受功率 | 05=0.5W | 1=1W | 5=5W | 10=10W | …… | S=可选 |
G=功率类型 | P=脉冲光 | C=连续光 | ||||
类型 | LMA-GDF-10/125-M | LMA-GDF-20/400-M |
工作波长 | 1015 – 1115 nm | 1015 – 1115 nm |
数值孔径 | 0.080 ± 0.005 | 0.065 ± 0.005 |
包层数值孔径(5%) | ≥ 0.46 | ≥ 0.46 |
芯层损耗 | ≤ 40.0 dB/km @ 1300 nm ≤ 20.0 dB/km @ 1200 nm | ≤ 12.0 dB/km @ 1300 nm ≤ 8.0 dB/km @ 1200 nm |
包层衰减 | ≤ 15 dB/km @ 1095 nm | ≤ 15.0 dB/km @ 1095 nm |
包层直径 | 125.0 ± 1.0 µm | 395.0 ± 5.0 µm |
芯径 | 10.5 ± 1.0 µm | 20.0 ± 1.5 µm |
涂覆层直径 | 245.0 ± 10.0 µm | 550.0 ± 15.0 µm |
包层/涂覆层偏差 | < 5.0 µm | N/A |
纤芯/包层同心度偏差 | ≤ 0.70 µm | ≤ 2.00 µm |
包层非圆度 | ≤ 0.5 % | ≤ 0.50 % |
涂覆层材料 | 低指数丙烯酸酯 | 低指数丙烯酸酯 |
强度测试的等级 | ≥ 100 kpsi (0.7 GN/m² | ≥ 100 kpsi (0.7 GN/m²) |
|
