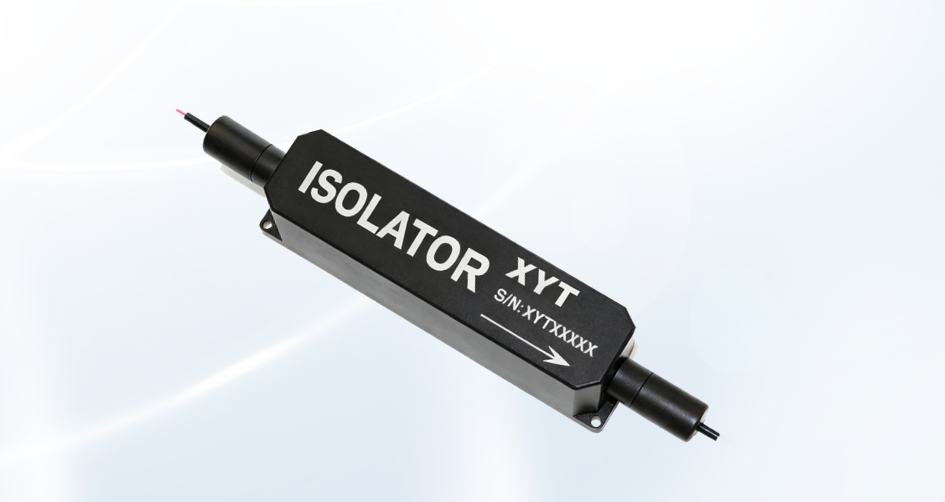

中心波长（nm） | 1950/2000/2050 |
带宽范围（nm） | ±20 |
典型隔离度(dB) | 32 |
最小隔离度(dB) | 16 |
典型插入损耗 (dB) | 0.8 |
最大插入损耗(dB) | 1.2 |
偏振相关损耗(dB) | 0.15 |
承受功率（连续光CW）（W） | 5 10 20 30或 定制 |
回波损耗（dB） | 45 |
接头类型 | FC/APC（＞1W不含头） 或 定制 |
光纤类型 | SM1950 或 其它 |
光纤长度（m） | 1米 或 定制 |
封装尺寸（mm） | 150x28x26 |
工作温度（℃） | -5~70 |
储存温度（℃） | -20~85 |
最大拉力（N） | ≤5 |
*规格为不带连接器，上述规格参数在中心波长、无连接器、室温23℃条件下测试得出。
*规格为不带连接器，对于带连接器的器件，插入损耗（IL）将增加0.3dB，回波损耗（RL）将降低5dB。
*对于不同功率参数，产品采用封装尺寸不同。

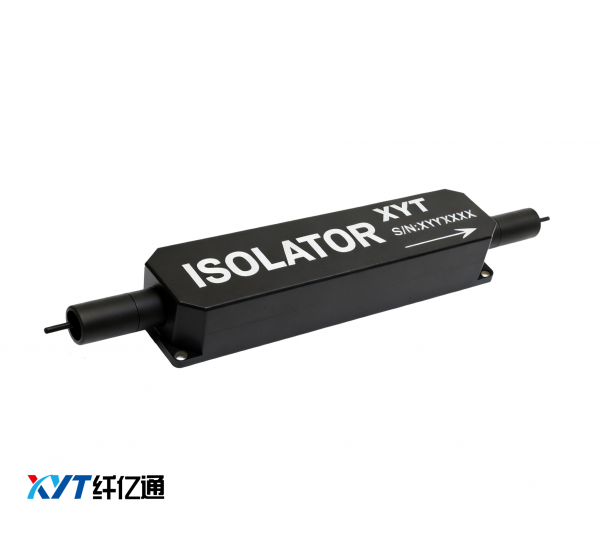

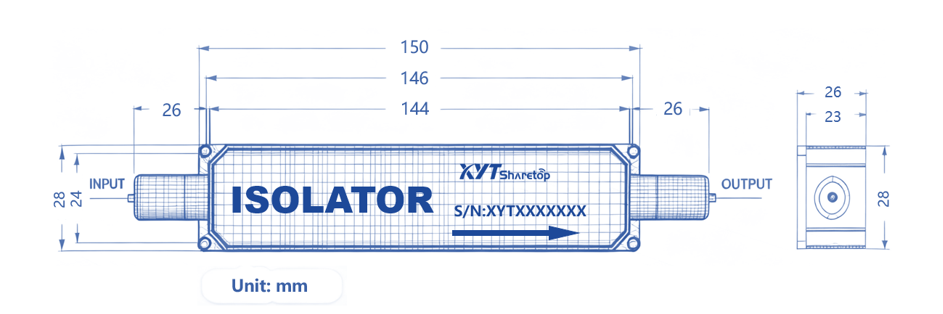

封装结构
产品订购：
订购信息： | ||||||
HISO=高功率隔离器 | XYT-HISO-A-B-C-D-E-F-G | |||||
A=工作波长 | 19=1950nm | 20=2000nm | 25=2050nm | …… | SS=可定制 | |
B=光纤类型 | Se=SMF-28e Corning | G15=SM-GDF-1550 Nufern | …… | SS=可定制 | ||
C=套管类型 | 0.25=裸纤250μm | 0.9= 900μm | 2.0=2.0mm | 3.0=3.0mm | AF=铠装 | SS=可定制 |
D=光纤长度 | 1M=1米 | 2M=2米 | …… | SS=可定制 | ||
E=接头类型 | FA=FC/APC | SA=SC/APC | FU=FC/UPC | …… | N=不含头 | SS=定制 |
F=承受功率 | 5=5W | 10=10W | 20=20W | 30=30W | …… | SS=可定制 |
G=功率类型 | P=脉冲光 | C=连续光 | ||||
类型 | SM1950 | SM-GDF-10/130-15M |
工作波长 | 1850 - 2200 nm | 800 – 2100 nm |
数值孔径 | 0.2 | 0.065 ± 0.005 |
包层数值孔径(5%) | N/A | ≥ 0.460 |
模场直径 | 8.0 µm @ 1950 nm | 10.5 ± 0.7 µm @ 1550 nm |
截止波长 | 1720 ± 80 nm | N/A |
芯层损耗 | N/A | N/A |
包层衰减 | N/A | ≤ 15.0 dB/km @ 1095 nm |
包层直径 | 125.0 ± 1.0 µm | 130.0 ± 1.0 µm |
芯径 | 7.0 µm | 10.0 ± 1.0 µm |
涂覆层直径 | 245.0 ± 15.0 µm | 215.0 ± 10.0 µm |
包层/涂覆层偏差 | N/A | N/A |
纤芯/包层同心度偏差 | ≤ 0.50 µm | ≤ 0.70 µm |
涂覆层材料 | 丙烯酸酯 | 丙烯酸酯 |
强度测试的等级 | ≥ 100 kpsi (0.7 GN/m² | ≥ 100 kpsi (0.7 GN/m² |
|
