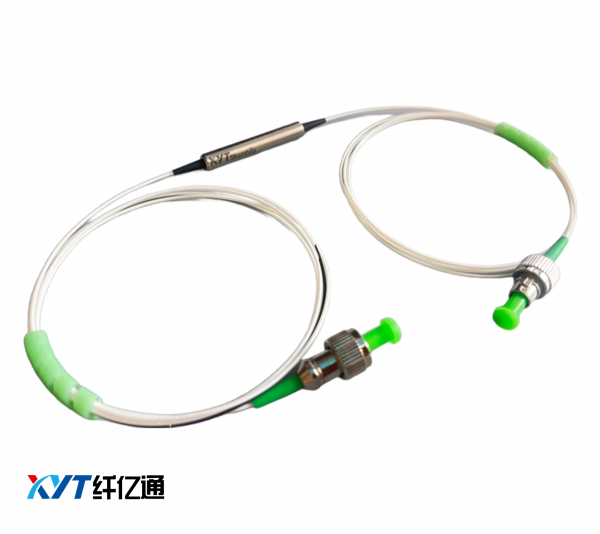

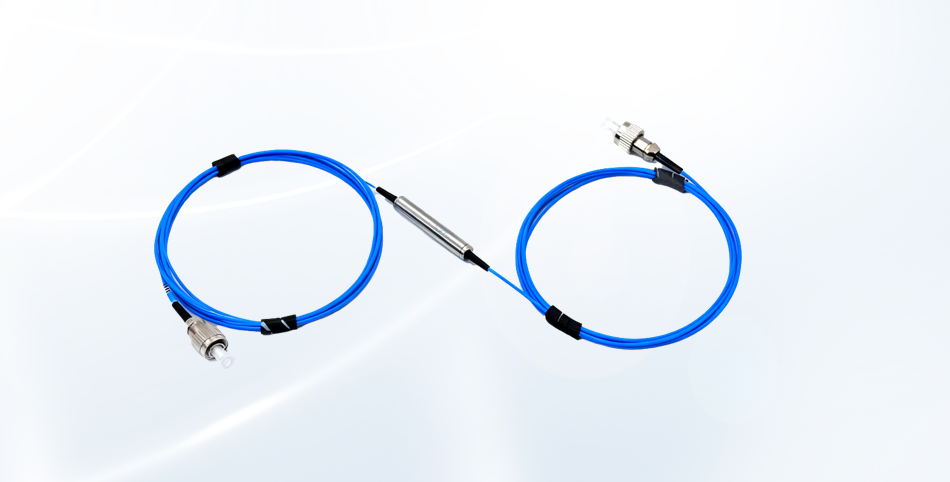

>偏振无关光纤隔离器（1650nm>）
>中心波长（nm） | 1650 | |
±20 | ||
单级 | 双极 | |
42 | 52 | |
32 | 46 | |
0.3 | 0.4 | |
0.5 | 0.6 | |
0.1 | ||
0.5 1 5>或 其它 | ||
55 | ||
默认FC/APC 或 定制 | ||
SMF-28e >或 定制 | ||
默认1米 或 定制 | ||
Φ5.5x35 | ||
-5~70 | ||
-20~85 | ||
≤5 | ||
>*>规格为不带连接器，上述规格参数在中心波长、无连接器、室温23℃条件下测试得出。
>*>规格为不带连接器，对于带连接器的器件，插入损耗（IL）将增加0.3dB，回波损耗（RL）将降低5dB。
>*>对于不同功率参数，产品采用封装尺寸不同。

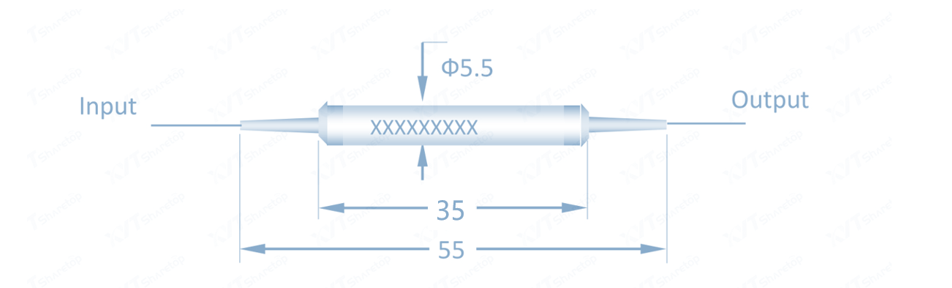

>封装结构
>
>产品订购：
| p>>订购信息： | ||||||
| p>>ISO=>光纤隔离器 | p>>XYT-ISO-A-B-C-D-E-F-G-H | |||||
| p>>A=>工作波长 | p>>1650=1650nm | p>>…… | p>>SS=>可定制 | |||
| p>>B=>结构类型 | p>>S=>单级 | p>>D=>双极 | ||||
| p>>C=>光纤类型 | p>>Se=SMF-28e Corning>光纤 | p>>…… | p>>SS=>可定制 | |||
| p>>D=>套管类型 | p>>0.25=>裸纤250μm | p>>0.9=>松套管900μm | p>>…… | p>>SS=>可定制 | ||
| p>>E=>光纤长度 | p>>1M=1>米 | p>>2M=2>米 | p>>…… | p>>SS=>可定制 | ||
| p>>F=>接头类型 | p>>FA=FC/APC | p>>SA=SC/APC | p>>FU=FC/UPC | p>>…… | p>>N=>不含头 | p>>SS=>定制 |
| p>>G=>承受功率 | p>>05=500mW | p>>1W=1W | p>>5W=5W | p>>10W=10W | p>>…… | p>>SS=>可定制 |
| p>>H=>功率类型 | p>>P=>脉冲光 | p>>C=>连续光 | ||||
>
>
| p>>类型 | p>>SMF-28e |
| p>>工作波长 | p>>1285 – 1330@ 1310 nm 1525 – 1575 @ 1550nm |
| p>>数值孔径 | p>>0.14 |
| p>>>包层数值孔径(5%) | p>>≥ 0.46 |
| p>>模场直径 | p>>9.2 ± 0.4µm @1310 nm 10.4 ± 0.5 @ 1550 nm |
| p>>截止波长 | p>>入cf≤ 1280 nm |
| p>>芯层损耗 | p>>≤ 0.03 dB/km @ 1310 nm ≤ 0.02 dB/km @ 1550nm |
| p>>包层衰减 | p>>≤ 15 dB/km @ 1095 nm |
| p>>包层直径 | p>>125.0 ± 0.7 µm |
| p>>芯径 | p>>9 µm |
| p>>涂覆层直径 | p>>242.0± 5 µm |
| p>>包层/涂覆层偏差 | p>>< 5.0 µm |
| p>>纤芯/包层同心度偏差 | p>>≤ 0.50 µm |
| p>>涂覆层材料 | p>>丙烯酸酯 |
>
|
