- Products description -

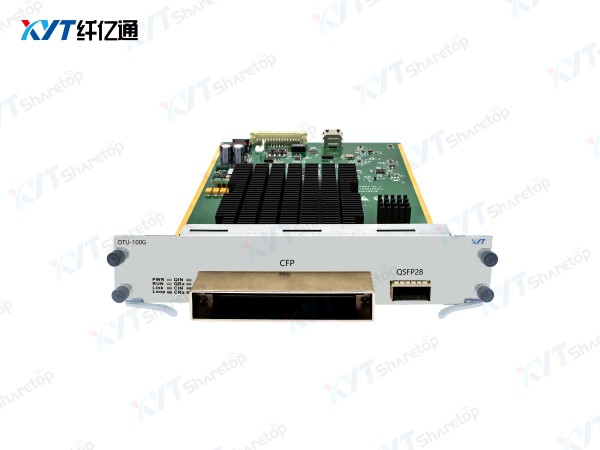

The 100G CFP OTU board is a 100G service access module developed by SHARETOP Technology for optical fiber links. It can adjust the wavelength of the CFP coherent optical module, and can be converted into DWDM standard wavelength optical signals. The device realizes wavelength division multiplexing transmission, and provides a high-quality solution for solving transmission lines with scarce optical fiber resources and large loss of optical fiber lines.
- Product Features -
1. Support DWDM transmission, wavelength conversion.
2. The single board supports 1 channel 100G bidirectional or 1 channel unidirectional service access.
3. The line side supports 100G CFP coherent optical modules and 4*25G CFP incoherent optical modules.
4. Client side supports multiple service interfaces: 100G Base-SR4/CWDM4/LR4/PSM4.
5. Support unified network management platform based on SNMP, network management methods CLI, Web.
6. Support CDR function, can optimize output, DDM signal monitoring, ALS.
7. Support software to close ports.
|
Products damaged due to human or non-use of other causes of improper,we promises one year warranty and lifetime maintenance,but the unauthorized disassembly equipment caused damage is not covered under warranty and returned within range. |
|
Under normal use,if there are product quality problems,or not work normally,we provide free repair or replacement service within one year;Within three years more than one year,we provide to collect the material cost,maintenance free. Repair warranty period of three years from the freight borne by each of the parties.After three years of warranty,the material cost,maintenance,freight(refers to the product of the two-way shipping to and from)shall be borne by the user. |
|
We promise that the product we provide can meet the performance requirements of users , and it is supplied by the user's sample request. |
